S116 Semi Automatic

S116 Semi Automatic Tyre Changers

Alat Pembuka Ban Semi Otomatis

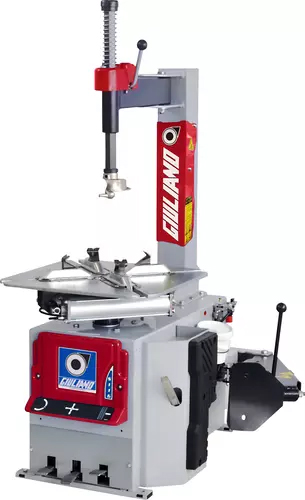

S116 Semi-automatic swing arm tyre changer for wheels with rim from 10" to 24" (max. wheel diameter 1100 mm./43", max. wheel width 330mm./13").

S116 tyre changer represents the Giuliano entry-level solution, suggested for low-mid volume shops, garages and repair shops. Simplicity is the strong point of this model, which combines solid and reliable design, Giuliano experience and classic well known operating mode.

Kualitas Produk

  • Diproduksi oleh teknisi handal Giuliano di Italia, dijamin produk dan kekuatan material yang terpilih kualitasnya.

Teknologi

Warranty

  • 5 Years Warranty On Gearbox.

S116 Tyre Changer

Semi Automatic

Model with 3: control pedals, fixed vertical tower, swinging horizontal arm and operating arm with manual lowering and locking by hand-lever.

Jaw Clamping

Jaw Clamping: Rim clamping is performed by means of 4 jaws facing each other, driven by pneumatic cylinders connected to the control pedal.

Blade Bead Breaking

Bead breaking by conventional blade, works with tyre assembly in vertical position.

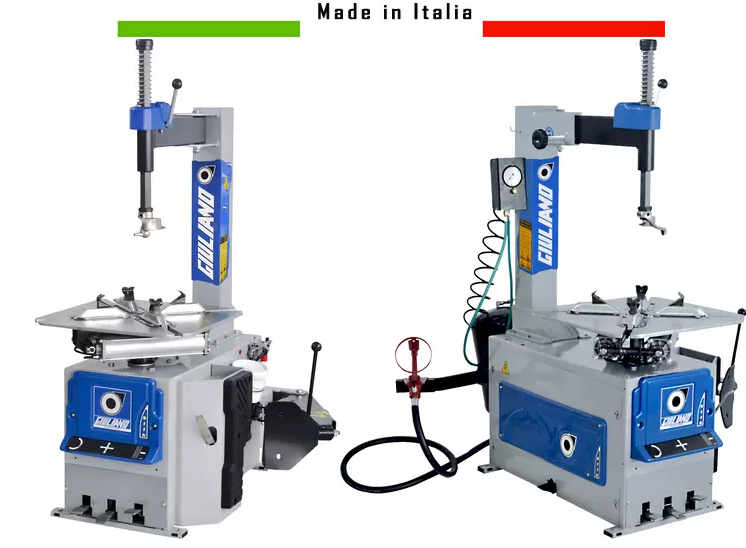

S116 Semi Automatic Tyre Changer S116 Semi Automatic Tyre Changer

Function:

  1. Robust vertical tower, swinging horizontal arm with ø 41 mm operating arm;
  2. Bead breaker double effect Cylinder ø 200 mm;
  3. Reinforced Chassis;
  4. Tabletop thickness 12 mm
  5. Fitting head designed for both standard and low profiled tyre applications;
  6. Tyre inflation by pedal (optional);
  7. Suitable for Press Arm ECO (optional);
  8. Suitable for Tubeless tyre bead seating system (optional);
  9. “Easy Access” extractable pedal box for quick service.
  10. 12V version suitable for mobile service available upon request. Ideal for mobile tyre fitters working from a van.

Specification:

  1. Rim clamping range from outside: 10" - 27" Adjustable jaws can be pre-set in 3 different holes on slides, to start clamping range from 10", 11" or 12". Tabletop cylinder stroke = 10"
  2. Rim clamping range from inside: 12" - 24" Adjustable jaws can be pre-set in 3 different holes on slides, to start clamping range from 10", 11" or 12". Tabletop cylinder stroke = 10"
  3. Max. tyre diameter: 1100 mm (43")
  4. Max. tyre width: 330 mm (13")
  5. Bead breaker force: 30800 N
  6. Operating pressure: 10 bar (145 psi)
  7. Power supply:
    1. 400V - 3ph - 2 speed
    2. 220V - 1ph
  8. Motor power: 0,55 kW (3ph)
  9. Balancing speed: 7 rpm
  10. Air Inflation Pressure 3,5 bar (50 Psi)
  11. Net weight: 190 Kg
  12. Dimensions: 1170 x 960 x 1760 mm
