1. Ergonomic design. Ergonomic, smooth and effortless positioning and locking of the operating arm.
2. Efficiency & Speed. Patented memory system keeps track of working position (diameter and width of the rim) making it possible to operate on a full set of wheels of the same type, through pedal control for automatic repositioning.
3. Improved rigidity. Parallelogram technology involves no sliding parts. Articulated parallelogram movement of the operating arm uses special joints to avoid excessive mechanical plays and reduce any flex of the mounting tool in any direction: transverse T, radial R and vertical V.
4. Extremely precise and powerful. Once the operating arm is locked in working position, the mounting tool automatically moves up and backwards, to grant the right distance from the rim (at about 2 mm).
5. Safe on wheel. Thorough structural stress testing has proved PAR-MOVE system to be much more rigid and safe on wheel and tyre than other traditional tyre changer.
6. Bead breaker disk provides safe and precise bead breaking operation on both tyre sides, just by flipping the arm manually.
7. Space saver. The new innovative space saving PAR MOVE tower is not tilting. Thanks to articulated parallelogram movement of the operating arm, the new S118 QX tyre machine do not require any additional rear and side space, as with conventional tilt back models, and can be installed in a working space perfectly fitting its actual overall dimensions.

Function:

1. Robust fixed vertical tower with innovative PAR-MOVE parallelogram operating arm [Giuliano Patent].
2. QX Leverless tyre mounting/demounting device [Giuliano Patent] for conventional, low profiled, UHP and Run Flat tyres.
3. SMART LOCK [Giuliano Patent] ultra-quick wheel clamping system, through cone and shaft with Smart Lock nut.
4. 5 years warranty on “Made in Giuliano” gearbox and PAR-MOVE
5. Bead breaker disk is slightly but purposely misaligned with the rim center for a better and faster penetration and immediate bead loosening, Center Driven Concept CDC [Giuliano Patent].
6. Manual tyre changer movement and pneumatically assisted positioning: safe and fast!
7. Power Unit is made by four (4) low voltage batteries, Inverter Unit and compressor 100 lt. 220 V
8. Operated by pedal and control console.
9. Double rotation speed by pedal (motoinverter). Variable speed air motor available on request.
10. Motoinverter for granting faster, more accurate and reliable drive for your tyre changer.
11. Arm/disk air operated bead breaker system with tilting arm for lower and upper bead.
12. Tyre inflation by pedal (standard).
13. Portable wheel balancer S862 (optional). Simple and fast, it allows you to complete the service with quick and reliable balancing at any time.
14. Suitable for Tubeless tyre bead seating system (optional).

POWER UNIT – COMPRESSOR

Power Unit is made by four (4) batteries and an inverter to convert batteries’ low voltage into 220V AC and power the compressor, as well as the tyre changer (when it is electric power supplied). Tyre changer can be powered by either a 220V-1ph-50/60Hz inverter motor (0,75 kW) or by air motor just connected to the compressor.

Power Unit can be installed in several different configurations, according to the type of VAN and your preference (total weight 350 kg.)

It is recommended to always install the whole device on a wooden platform, in order to isolate the van bottom surface.

NO FUEL OR GAS EMISSION INVOLVED. 100% GREEN !!!

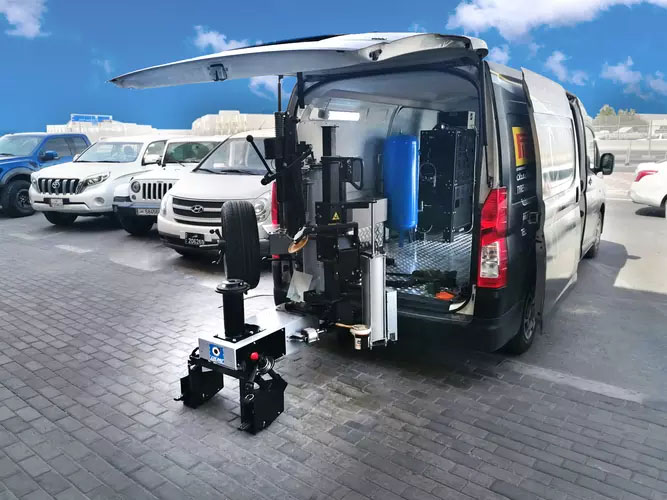

Safe and fast tyre changer positioning. Simple mechanism helps moving S118 QX in and out the van with easy process, all by hand. Air operated cylinders, joystick controlled, always complete the operation, securing S118 QX in its storage position or working position outdoor.

Once S118 QX is secured outdoor, it just needs 1100mm. space outside the van as working area. Limited working space for a real professional tyre changer !!
